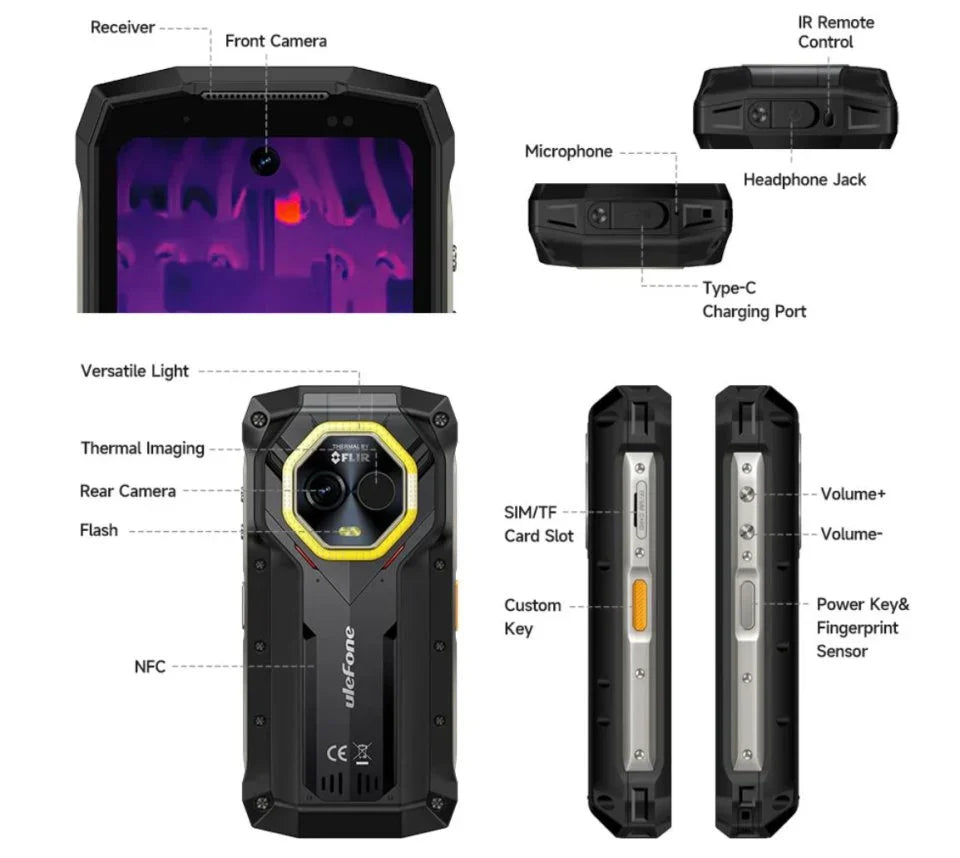

Armor Mini 20T Pro 5G

The world's smallest smartphone with a thermal camera

• 4.7" Screen
• 256GB built-in memory + up to 16GB RAM
• Thermal camera & red/blue light function
• 33W charging & 15W wireless charging

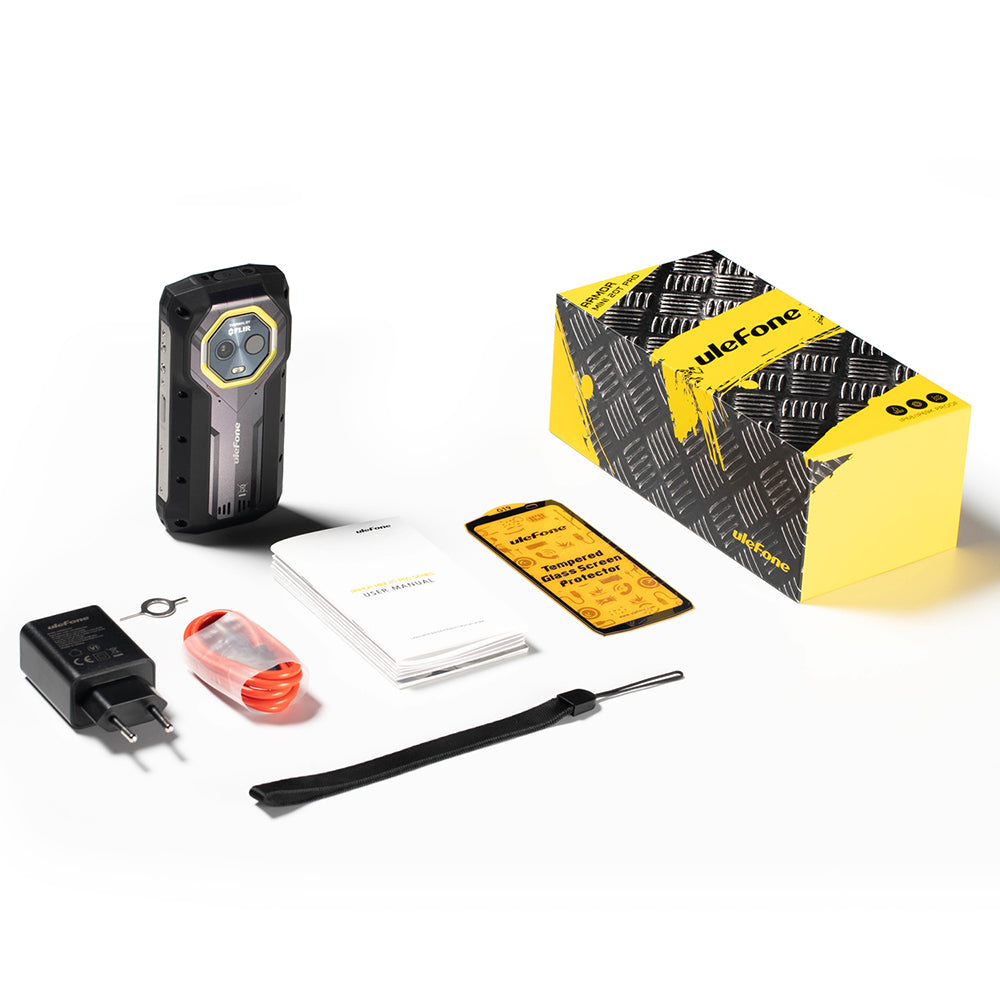

• Charger and cable included!

Armor 20T Mini Pro - probably the world's smallest smartphone with 5G, flashlight function, built-in warning light AND thermal camera from FLIR!

With IP68/IP69K and MIL-STD-810G certifications, it can withstand drops, dust, water, and extreme temperatures. Its compact size makes it easy to handle with one hand, and its robust design makes it ideal for outdoor enthusiasts and professionals working in harsh environments, or for those who are tired of their screen breaking often.

Screen

The Armor 20T Mini Pro features a 4.7" screen with Corning Gorilla Glass 5, ensuring your screen stays free from scratches and impacts. The screen offers good visibility even in direct sunlight, and touch sensitivity is responsive, even when used with gloves or wet fingers.

Fast & Wireless Charging

The 6200mAh battery in the Armor 20T Mini Pro provides up to 336 hours of standby, 34 hours of talk time, or 22 hours of video playback. The phone also supports 33W fast charging via cable and 15W wireless charging, so you can quickly recharge the battery when needed. In other words: no battery problems :-)

Processor in focus

Under the hood, Ulefone has packed a powerful MediaTek Dimensity 6300 5G chipset, along with up to 16GB RAM and 256GB internal memory, and an additional 2GB with a memory card. This combination delivers smooth performance, whether you're multitasking, gaming, or using demanding apps. The phone handles everyday tasks with ease and can even manage more intensive activities without lag.

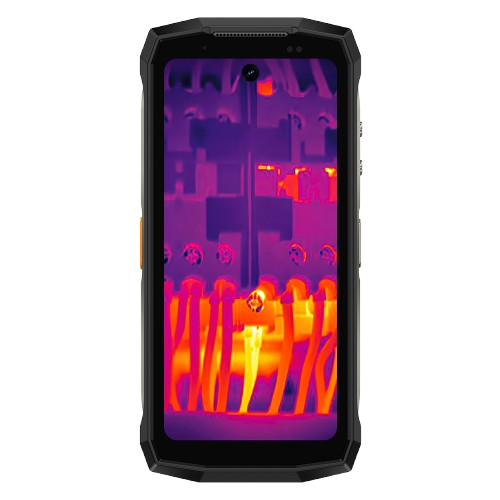

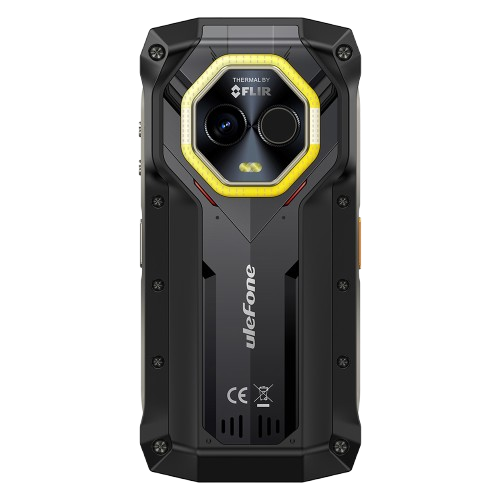

Thermal by FLIR

The built-in Thermal by FLIR sensor detects infrared light from objects with extremely low temperatures (-273c) and converts the photo into an image that the eye can perceive. The result is photos like those professionals take for thermal detection. An extremely useful tool built into the Armor 20T Mini Pro, which would cost up to SEK 10,000 to buy separately.

Flashlight & Warning Light

Unlike most smartphones, the Armor 20T Mini Pro has a built-in light. That's right, not a flashlight but a light with a 500lm light source, enough to illuminate a room, tent, or other areas with dim or no lighting. In addition, it has a unique warning light function that glows blue or red or flashes between red and blue, turning the phone into a warning or positioning light.

Google Pay, Face Unlock, etc.

Running on Android, the Ulefone Armor 20T Mini Pro offers a clean and user-friendly interface. Regular updates will ensure the device runs smoothly and securely. Other features include NFC support, IR, face unlock, programmable buttons, built-in FM radio, a fingerprint scanner for added security, and much more.

Technical Specifications

Launched - 2024, September

Network - GSM/CDMA/HSPA/CDMA200/LTE/5G

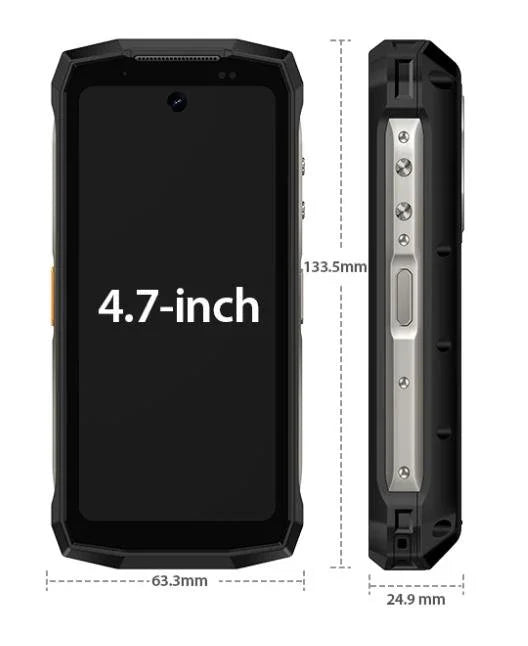

Body Dimensions - 133.5 x 63.3 x 24.9 mm (5.26 x 2.49 x 0.98 in)

Weight - 301 g (10.62 oz)

SIM - Hybrid Dual SIM (Nano-SIM, dual stand-by)

IP68/IP69K

• Dust/water resistant (up to 1.5m for 30 min)
• Drop-to-concrete resistance from up to 2m
• MIL-STD-810H compliant
• 500 lumens dedicated flood flashlight

Display Type - IPS LCD, 90Hz

Size  - 4.7 inches, 53.3 cm²Â (~63.1% screen-to-body ratio)

Resolution  - 720 x 1600 pixels, 20:9 ratio (~373 ppi density)

Protection - Corning Gorilla Glass 5

Platform/operating system - Android

Chipset  -

• Mediatek Dimensity 6300 (6 nm)
• Octa-core (2x2.4 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55)
• Mali-G57 MC2

Memory - microSDXC (dedicated slot), Internal 256GB 8GB RAM

Main Camera -

• 50 MP, f/2.0, (wide), 1/1.31", 1.2µm
• Thermal camera by Flir, 160x120 px, 8.7Hz
• Features: Dual-LED flash, HDR, panorama
• Video: 1440p@30fps, 1080p@30fp

Selfie Camera

• 32 MP, f/2.5, (wide), 1/2.8", 0.8µm
• Video: 1440p@30fps, 1080p@30fps

Sound - Loudspeaker, 3.5mm jack

Communication -

• Wi-Fi 802.11 a/b/g/n/ac, dual-band
• Bluetooth: 5.2, A2DP, LE

Positioning - GPS, GLONASS, GALILEO, BDS

NFC - Yes

Infrared port - Yes

Radio - Wireless FM radio

USB - USB Type-C 2.0, OTG

Sensors - Fingerprint, accelerometer, gyro, proximity, compass, barometer

Battery - Li-Ion 6200 mAh, non-removable

Charging - 33W wired, 15W wireless, 5W reverse wireless

Colors - Black
